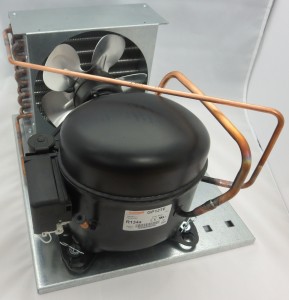

Condensing Units

Standard

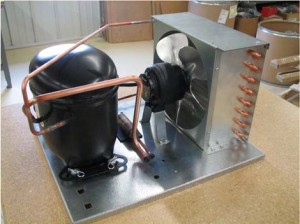

• CUA0020

  Condensing Unit, 1/5hp, R134a
  01	Standard
  21	High and low service valves
  31	Receiver tank
  41	High and low service valves and receiver tank
  51	Standard unit with fan guard
  61	High and low service valves and fan guard

  1/5 HP, Application: M/HBP
  Refrigerant: R‐134a
  Voltage: 115V‐60Hz
  Dimensions (in) 13.0 W x 16.0 L x 9.0 H
  Weight: 31.4 lb (std unit)
  Compressor: Cubigel GL80TE (7.57 cc)
  ISO VG22 Ester Oil (300cc oil charge)
  Motor Type: CSIR
  Amperage: 24.0 LRA, 4.6 RLA
  Fan Motor: 6 Watt, Unit Bearing, 1550 RPM

• CUA0025

  Condensing Unit, 1/4hp, R134a
  01	Standard
  21	High and low service valves
  31	Receiver tank
  41	High and low service valves and receiver tank
  51	Standard unit with fan guard
  61	High and low service valves and fan guard

  1/4 HP, Application: M/HBP
  Refrigerant: R‐134a
  Voltage: 115V‐60Hz
  Dimensions (in) 13.0 W x 16.0 L x 9.0 H
  Weight: 31.4 lb (std unit)
  Compressor: Cubigel GL80TE (7.57 cc)
  ISO VG22 Ester Oil (300cc oil charge)
  Motor Type: CSIR
  Amperage: 27.0 LRA, 5.3 RLA
  Fan Motor: 6 Watt, Unit Bearing, 1550 RPM

• CUA0033

  Condensing Unit, 1/3hp, R134a
  01	Standard
  21	High and low service valves
  31	Receiver tank
  41	High and low service valves and receiver tank
  51	Standard unit with fan guard
  61	High and low service valves and fan guard

  1/3 HP, Application: M/HBP
  Refrigerant: R‐134a
  Voltage: 115V‐60Hz
  Dimensions (in) 13.0 W x 16.0 L x 9.0 H
  Weight: 36.0 lb (std unit)
  Compressor: Cubigel GP12TE (12.05 cc)
  ISO VG22 Ester Oil (350cc oil charge)
  Motor Type: CSIR
  Amperage: 34.0 LRA, 7.0 RLA
  Fan Motor: 9 Watt, Unit Bearing, 1550 RPM

• CUA0038

  Condensing Unit, 3/8hp, R134a
  01	Standard
  21	High and low service valves
  31	Receiver tank
  41	High and low service valves and receiver tank
  51	Standard unit with fan guard
  61	High and low service valves and fan guard

  3/8 HP, Application: M/HBP
  Refrigerant: R‐134a
  Voltage: 115V‐60Hz
  Dimensions (in) 14.0 W x 17.0 L x 11.75 H
  Weight: 40.2 lb
  Compressor: Cubigel GP14TE (14.17 cc)
  ISO VG22 Ester Oil (400cc oil charge)
  Motor Type: CSIR
  Amperage: 37.0 LRA, 8.4 RLA
  Fan Motor: 16 Watt, Unit Bearing, 1550 RPM

• CUA0050

  Condensing Unit, 1/2hp, R134a
  01	Standard
  21	High and low service valves
  31	Receiver tank
  41	High and low service valves and receiver tank
  51	Standard unit with fan guard
  61	High and low service valves and fan guard

  1/2 HP, Application: M/HBP
  Refrigerant: R‐134a
  Voltage: 115V‐60Hz
  Dimensions (in) 14.0 W x 17.0 L x 11.75 H
  Weight: 42.4 lb
  Compressor: Cubigel GPY16RDa (16.15 cc)
  ISO VG22 Ester Oil (400cc oil charge)
  Motor Type: CSIR
  Amperage: 45.0 LRA, 10.2 RLA
  Fan Motor: 16 Watt, Unit Bearing, 1550 RPM

Custom

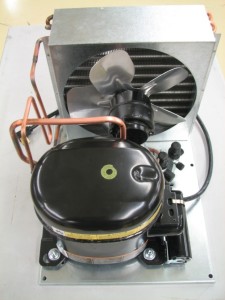

• Custom



  Custom options
  Voltage	110v, 220v – 50 hrtz or 60 hrtz
  Refrigerant	R134a and R404a, Inquire about other options
  Different Footprint (baseplate)	Do you need a customized footprint? Contact us for details.
  Sheet Metal	fan guard, shroud, special configuration?
  Complete the refrigeration system (fully charged)	evaporator coil
